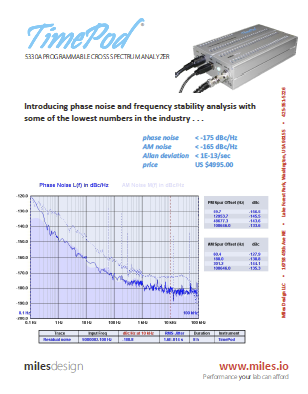

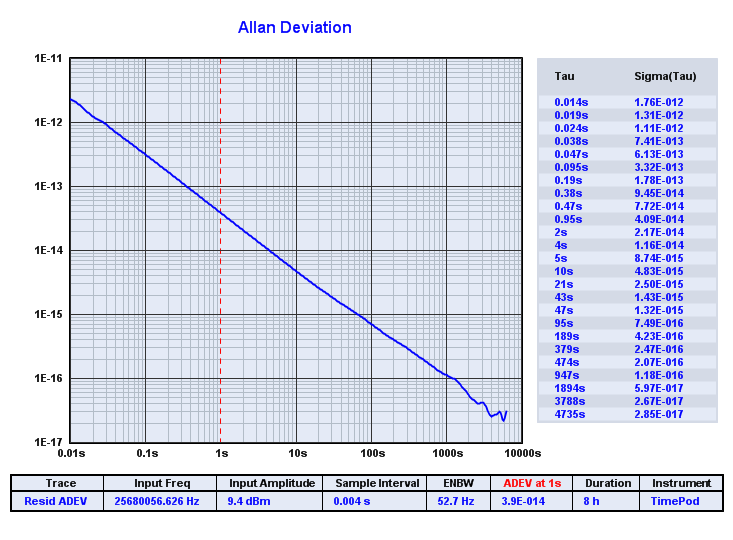

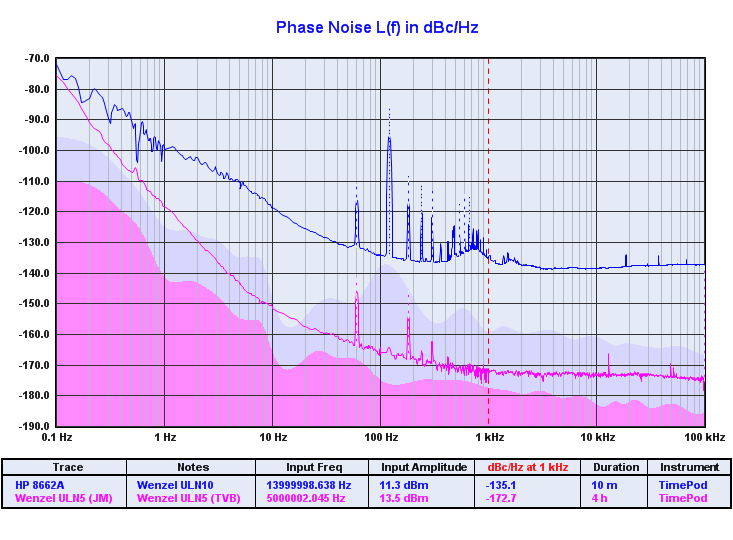

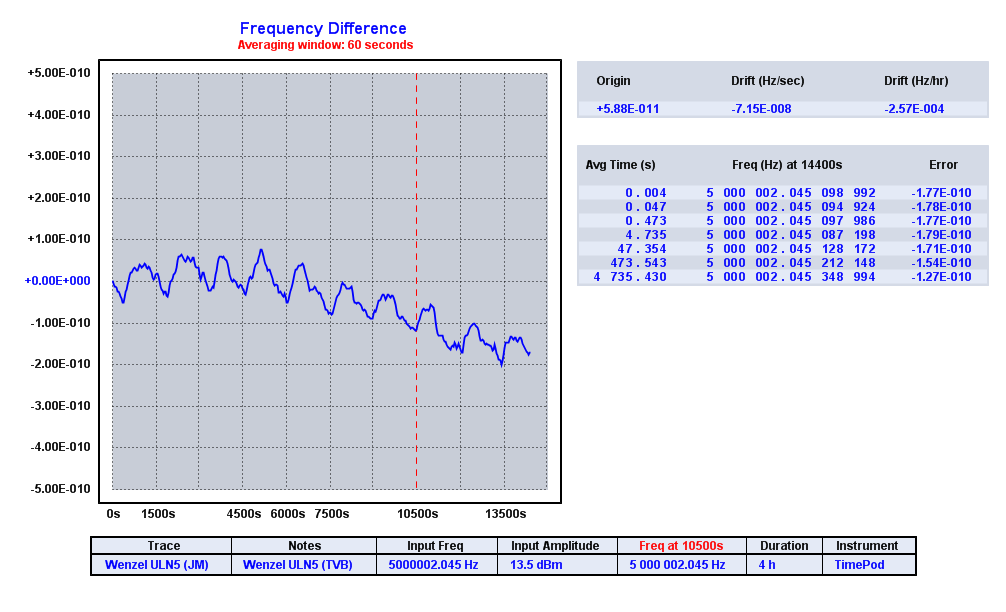

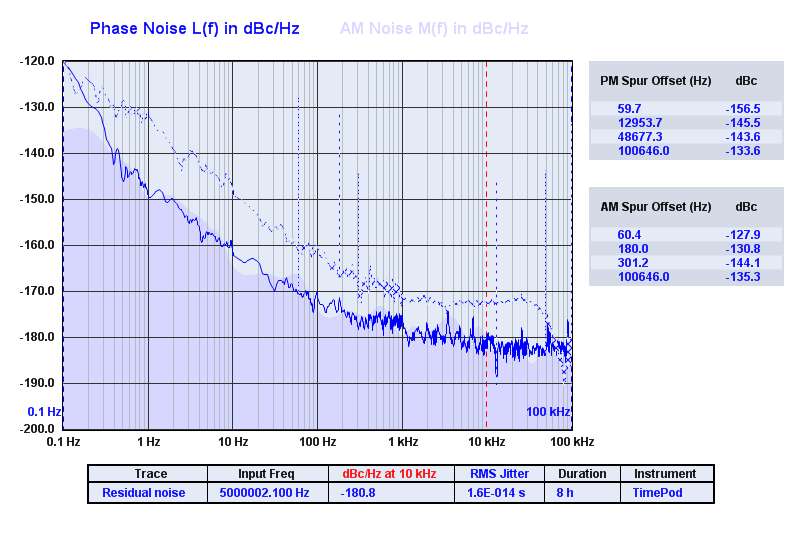

November 14, 2011 Miles Design introduces the 5330A Programmable Cross Spectrum Analyzer from its TimePod® line of time and frequency analysis instrumentation. The TimePod 5330A offers phase noise, AM noise, and stability measurement performance previously available only at several times its US $4,995.00 price. With its fully-documented hardware architecture and accessible data formats, the TimePod 5330A enables an unprecedented array of applications, from metrology research to the manufacturing floor.

The TimePod software platform, TimeLab, runs on 32-bit or 64-bit Windows XP SP2 or later versions. It requires a CPU with SSE2 support (Pentium 4 or equivalent.) The current release of TimeLab includes driver and plugin support for the TimePod 5330A, as well as support for many other frequency counters, TICs, and timing analyzers.

User documentation may be downloaded here (6 MB .PDF).

Deliveries are currently being scheduled for May-June, 2012, with standard warranty terms including our one year, no-questions-asked warranty on parts and labor and unlimited technical support. For more information or to reserve a TimePod, please contact Miles Design.
